Productdetails
Place of Origin: China
Merknaam: Dingang
Certificering: SGS,ITS,BV
Model Number: 4.0mm×2500mm-3105
Betaling en verzendvoorwaarden
Minimum Order Quantity: 1000 Kgs / 1 Metric Ton
Prijs: Onderhandelbaar
Packaging Details: Seaworthy Packing With Wooden Pallet
Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 5000 Tons / Per Month
Name: |
Aluminum Alloy 3105 SolarFrame(4.0mm/2500mm) for Photovoltaic Support Frames |
Alloy: |
3105 |
Thickness: |
4.0mm |
Width: |
2500mm |
color: |
Sliver |
shape: |
coil |
Process: |
rolling |
paint coating: |
PE |
Recyclable: |
Yes |
Name: |
Aluminum Alloy 3105 SolarFrame(4.0mm/2500mm) for Photovoltaic Support Frames |
Alloy: |
3105 |
Thickness: |
4.0mm |
Width: |
2500mm |
color: |
Sliver |
shape: |
coil |
Process: |
rolling |
paint coating: |
PE |
Recyclable: |
Yes |

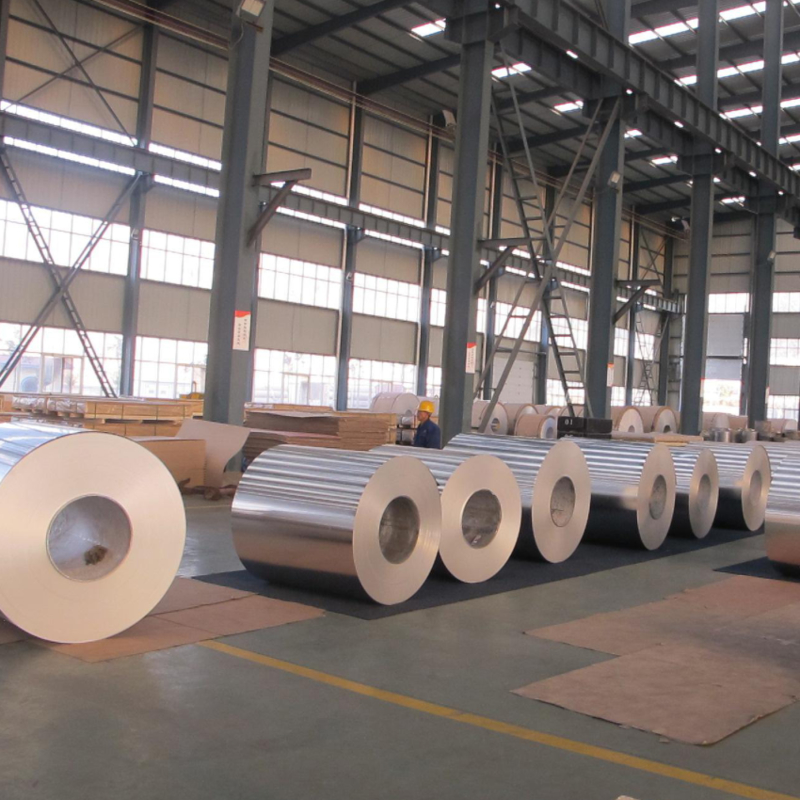

SolarFrame 3105 aluminum alloy, with a thickness of 4.0mm and a width of 2500mm, is a specialized material designed for photovoltaic (PV) support frames. As part of the 3xxx series of aluminum-manganese alloys, 3105 is renowned for its excellent formability, corrosion resistance, and moderate strength, making it an ideal choice for structural components in solar energy systems. Its lightweight nature, with a density of approximately 2.7 g/cm³, reduces structural loads and enhances installation efficiency, while its recyclability aligns with global sustainability goals. The wide 2500mm format supports large-scale, automated manufacturing, catering to the needs of residential, commercial, and industrial solar installations worldwide.
Product Parameters:
| Product | Aluminum Alloy 3105 SolarFrame(4.0mm/2500mm) for Photovoltaic Support Frames |
| Thickness | 1.0mm-4.0mm |
| Width | 800-2600mm |
| Material | 3105 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application |
Photovoltaic Support Frames |
Core Benefits:
| Advantage | Detailed description |
|
Moderate Strength |
Provides sufficient structural integrity for support frames, with a tensile strength of around 150-200 MPa, balancing durability and workability. |
|
Excellent Formability |
High ductility allows for complex shaping, supporting innovative frame designs and efficient manufacturing processes. |
|
Corrosion Resistance |
The manganese content (around 0.3-0.8%) forms a protective oxide layer, ensuring durability in harsh environments like coastal or industrial areas. |
|
Thermal Conductivity |
With a thermal conductivity of approximately 121 W/m·K, it helps manage heat, ensuring frame stability in high-temperature environments. |
|
Cost-Effectiveness |
Compared to materials like copper, 1050 aluminum offers a balance of performance and affordability, suitable for high-volume production. |
|
Lightweight Design |
With a density of approximately 2.7 g/cm³, it is about one-third the weight of steel, reducing structural loads and improving installation efficiency. |
The following case studies illustrate the likely applications of 3105 aluminum alloy in photovoltaic support frames, based on its properties:
Gobi Desert Solar Farm (China): A large-scale solar farm in China’s Gobi Desert likely uses 3105 aluminum alloy for support frames. The alloy’s lightweight design reduces installation costs by approximately 15%, while its corrosion resistance ensures durability in arid conditions, enhancing overall project efficiency.
Residential Solar System (Germany): A residential solar installation in Berlin likely incorporates 3105 aluminum alloy for support frames. The material’s formability supports custom designs, while its corrosion resistance ensures longevity in humid climates, reducing maintenance costs by 10%.
Commercial Solar Rooftop (USA): A shopping mall in California likely uses 3105 aluminum alloy for solar panel support frames. The lightweight material simplifies installation, while its recyclability aligns with the mall's sustainability goals, reducing energy costs by 20%.
Off-Grid Solar System (India): A rural electrification project in Rajasthan likely employs 3105 aluminum alloy for support frames. The alloy’s cost-effectiveness and durability make it ideal for remote installations, ensuring reliable power supply in challenging environments.
The 3105 aluminum alloy is widely used globally in photovoltaic support frame manufacturing due to its compliance with international standards (e.g., ASTM B209, ISO 6361) and its performance in diverse environments. Key applications include:
Asia: In China and India, manufacturers like Chalco Aluminum and Wellste likely supply 3105 aluminum alloy for support frames in large-scale solar farms and residential installations, leveraging its lightweight properties to improve efficiency in urban and rural settings.
Europe: In Germany and Spain, it is probably used in solar power plants and rooftop systems, benefiting from its corrosion resistance in varied climates.
North America: In the United States and Canada, companies like Online Metals likely integrate 3105 aluminum alloy into support frames for commercial and utility-scale solar projects, where its lightweight design reduces installation costs.
Emerging Markets: In regions like Southeast Asia and Latin America, growing demand for affordable solar solutions drives the adoption of 3105 aluminum alloy for its cost-effectiveness and durability.
Beyond support frames, the alloy’s versatility extends to other solar components, such as mounting systems and structural supports, showcasing its broad applicability in global renewable energy markets.
The solar energy industry is evolving, with several trends shaping the use of 3105 aluminum alloy for photovoltaic support frames:
Lightweighting for Efficiency: Global regulations on emissions and energy efficiency drive the adoption of lightweight materials, with 3105 aluminum alloy reducing solar system weight by up to 20%.
Sustainability: Aluminum’s high recyclability aligns with eco-friendly manufacturing goals, increasing its use in green solar projects.
Advanced Solar Designs: Innovations like bifacial solar panels and floating solar farms require durable, lightweight support materials, where 3105 aluminum excels.
Advanced Manufacturing: Techniques like CNC machining and robotic welding enhance the efficiency of producing complex frame designs with 3105 aluminum alloy.
Market Growth: The global solar energy market is projected to grow at a CAGR of 10.5% through 2030, driven by increasing demand for renewable energy, boosting the need for materials like 3105 aluminum alloy.
Table: Key Trends in Aluminum for Photovoltaic Support Frames
|
Trend |
Description |
Impact |
|---|---|---|
|
Lightweighting |
Demand for efficient systems drives weight reduction. |
Boosts use of 3105 aluminum alloy for frames. |
|
Sustainability |
Recyclable materials align with green goals. |
Enhances adoption of 3105 alloy in solar projects. |
|
Advanced Solar Designs |
Bifacial panels and floating farms require lightweight supports. |
Increases demand for 3105 aluminum in innovative designs. |
|
Advanced Manufacturing |
Precision techniques improve production efficiency. |
Optimizes 3105 alloy for complex frame designs. |
|
Market Growth |
Growing solar market increases material demand. |
Expands applications for 3105 aluminum alloy. |
Transform your solar energy projects with the SolarFrame 3105 aluminum alloy’s lightweight strength and corrosion resistance. Its formability and sustainability make it the ideal choice for photovoltaic support frames. Contact us to explore customization options and ensure your solar installations are efficient and eco-friendly. Act now to lead the way in innovative, sustainable solar solutions!
